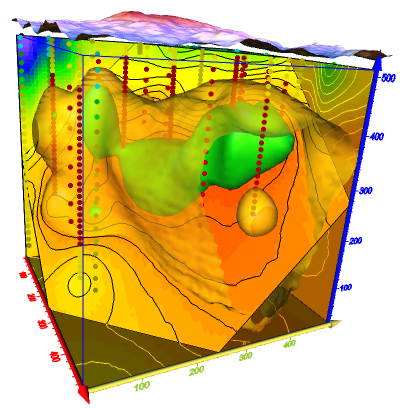

Create powerful, fast, customized 3D images of
your data with Voxler 3. Easily import data in a multitude of file
formats to create stunning models that visualize the relationships
across your data set. This robust, yet user-friendly program gives
you the power to display your data in a variety of formats and
colors, capture video animation of your moving model, and select
from several image and data export options.
What's New in Voxler 3?
Render Well Data in 3D, Including Deviated Boreholes
Rendering well data has never been easier! Voxler 3 can now
render straight and deviated well bores in true 3D space. Once a
well path is modeled, you can render from-to data, wire-line logs,
curves, and directional survey data along the well path. Multiple
variables can be rendered along the well paths simultaneously.
3D Volumetric Modeling with Volumetric Calcualtions
Generate 3D Isosurfaces from your gridded point dataset and now
calculate the volume above or below the specified isovalue.
Label Scatter Plots by any X, Y, Z, C or
Labels can now be displayed on the points of the ScatterPlot
module. You can label your scatter plots by the X coordinates, the Y
coordinates, the Z coordinates. a combination of all coordinates,
any specified component values, or a text or data value from a label
column in the source dataset. All labels have full formatting and
editable font options.
3D Volumetric Modeling has Been Expanded in
Voxler with the Addition of a New 3D Block-style Model
Using Voxler's new FaceRender module, you can display true voxel
data in a 3D block model. Display specific ranges of your data,
count the number of blocks, calculate the average block value, and
most importantly calculate the volume of the specified value range
of your data. This module could be extremely helpful when you are
trying to model a sub-surface ore body in 3D and estimate a
volumetric calculation of the subsurface body.
Clip multiple graphical display modules at the same time
Voxler's enhanced ClipPlane module now accepts multiple inputs
to save you time and effort clipping multiple graphical display
modules at the same time. Only set the clipping parameters once!
Expanded File Support
Voxler can now import and export Excel XLSX files. Import file
support has been added for LAS files and ER Mapper's ECW files.
Voxler can also now export ZMAP and CPS3 grid files.
Drape Imagery over 3D HeightFields
Voxler 3 now allows you to drape satellite and aerial imagery
over 3D HeightField surfaces. We have added even more flexibility to
Voxler by allowing this highly requested functionality to be
compatible with Surfer-generated GRD files and by using superior
texture mapping algorithms to fit the image to the surface.
The User Interface is Now More Friendly
Many enhancements have been added to Voxler 3 to increase
usability. We have added an exceptionally organized Property Manager
to the interface that allows you to quickly find and manipulate the
properties you are looking for. We have also added a number of
highly-requested module behavior enhancements to the Network
Manager, which allow for increased network management. Click and
drag all Voxler project files and data files onto the user interface
or Voxler icon for rapid loading and importing. The Viewer Window
now supports tabbed windows so you can quickly go back and forth
between multiple views of your project.
Voxler 3 is much faster with the addition
of Multithreaded Processing
You will undoubtedly see the increase in performance of Voxler
3; we have added multithreaded processing to almost every aspect of
the program. Voxler 3 will now take advantage of SMP architectures
for many of its processing algorithms.
Voxler 3 is much faster with the addition of Multithreaded
You will undoubtedly see the increase in performance of Voxler 3; we
have added multithreaded processing to almost every aspect of the
program. Voxler 3 will now take advantage of SMP architectures for
many of its processing algorithms.
Exporting 3D Gridded Data to a Single Data File
Voxler 3 now allows a much more streamlined export of lattices
and 3D gridded data by supporting a single XYZC datasheet to be
exported from the Gridder in XLS, DAT, CSV, and TXT formats.
Transforming Data in Voxler's Scene is Now More Flexible
The transforms in Voxler have been completely overhauled to add
much more usability and flexibility. Transformations are not just
starting at the data's midpoint and moving out in equal directions.
You can now specify the origin where you want the transformation to
start. The Axes are now scaled along with the transformations, so no
more stretched axes.
Convert Data from Wells and Lattices into 3D Point Clouds
Use Voxler's new ExtractPoints module allows you to quickly
convert data from multiple well data sources into a single XYZVC
Point Cloud. The point data can then be gridded and then rendered
using any of Voxler's graphical display modules. Lattices can also
be easily converted into a XYZC point set using this great addition
Drape Contours over Surfer Grid Files
Voxler 3 now renders contours directly from Surfer GRD files and
drapes them over HeightFields in true 3D space.
Increased Range in Automation Controls
Repetitive tasks have never been easier to automate on Voxler
with the newly updated version of Scripter that ships with Voxler 3.
Transparency and view characteristic controls have also been added
to Voxler's automation model. All new features, including well
rendering, can be fully controlled from a script.
Display Cross-sections that were Generated from Strater 3 in 3D
There is a direct link between Strater 3 and Voxler 3 where
cross-sections that are created in Strater 3 can be directly
exported, displayed, and rotated in Voxler's 3D scene.
